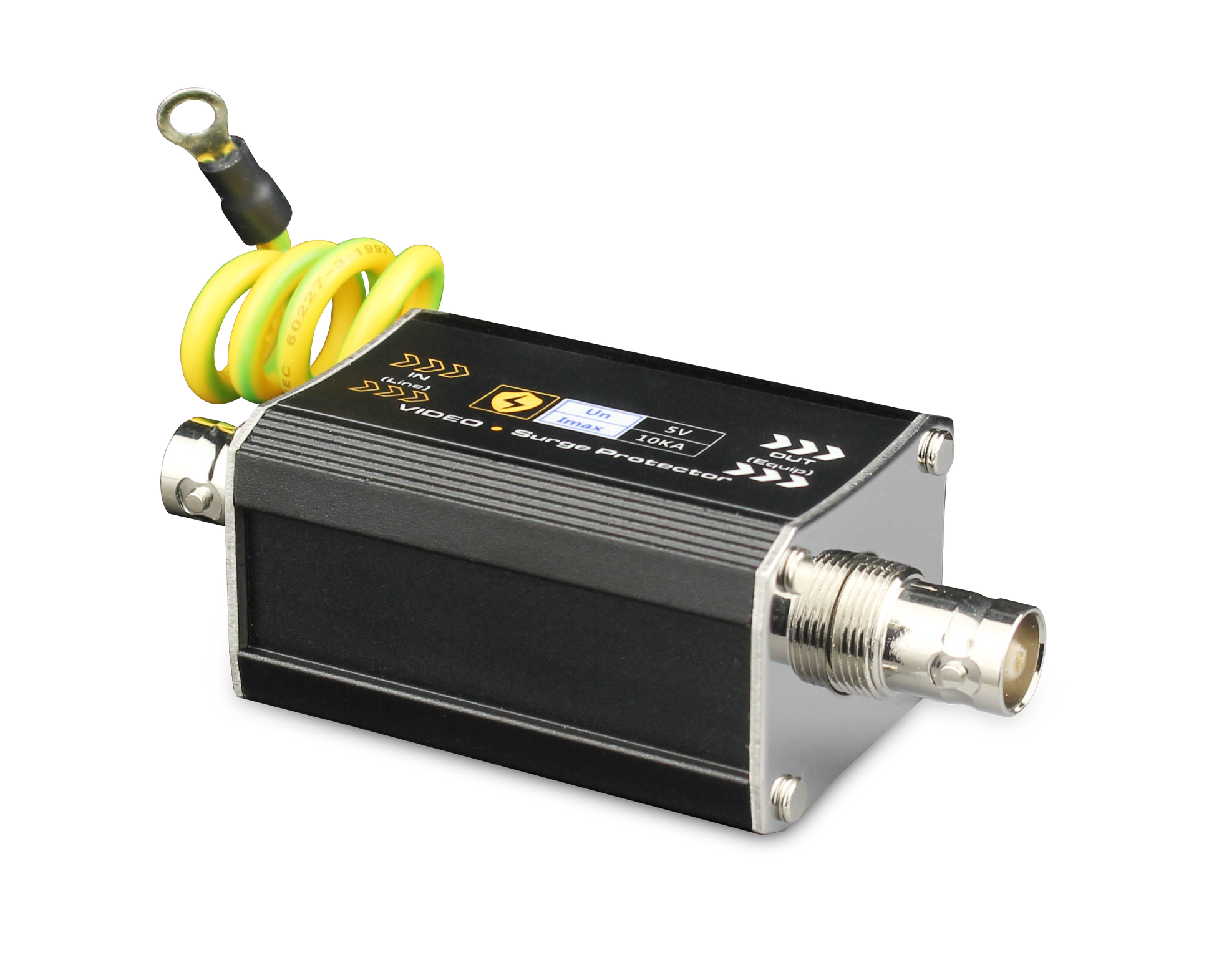

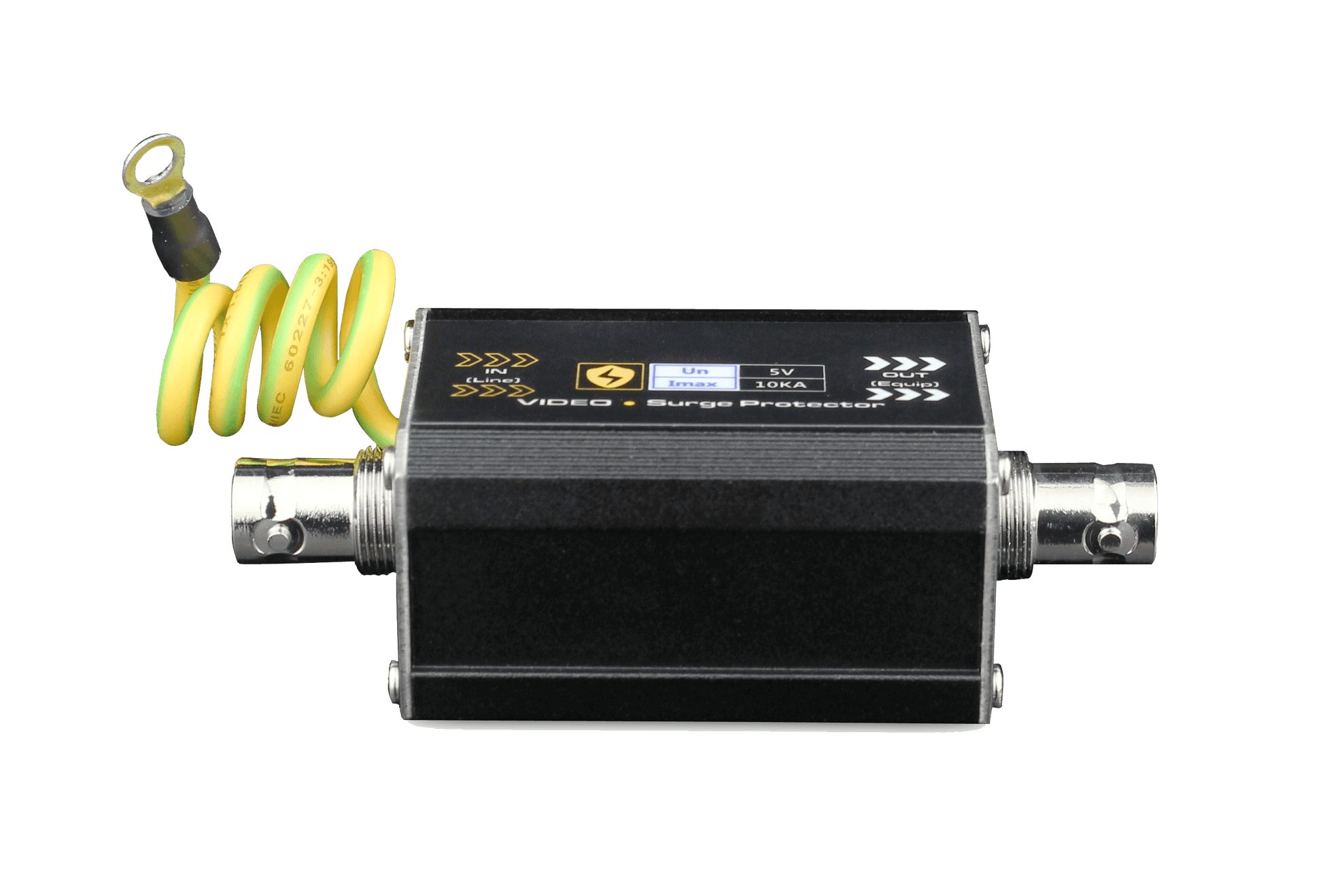

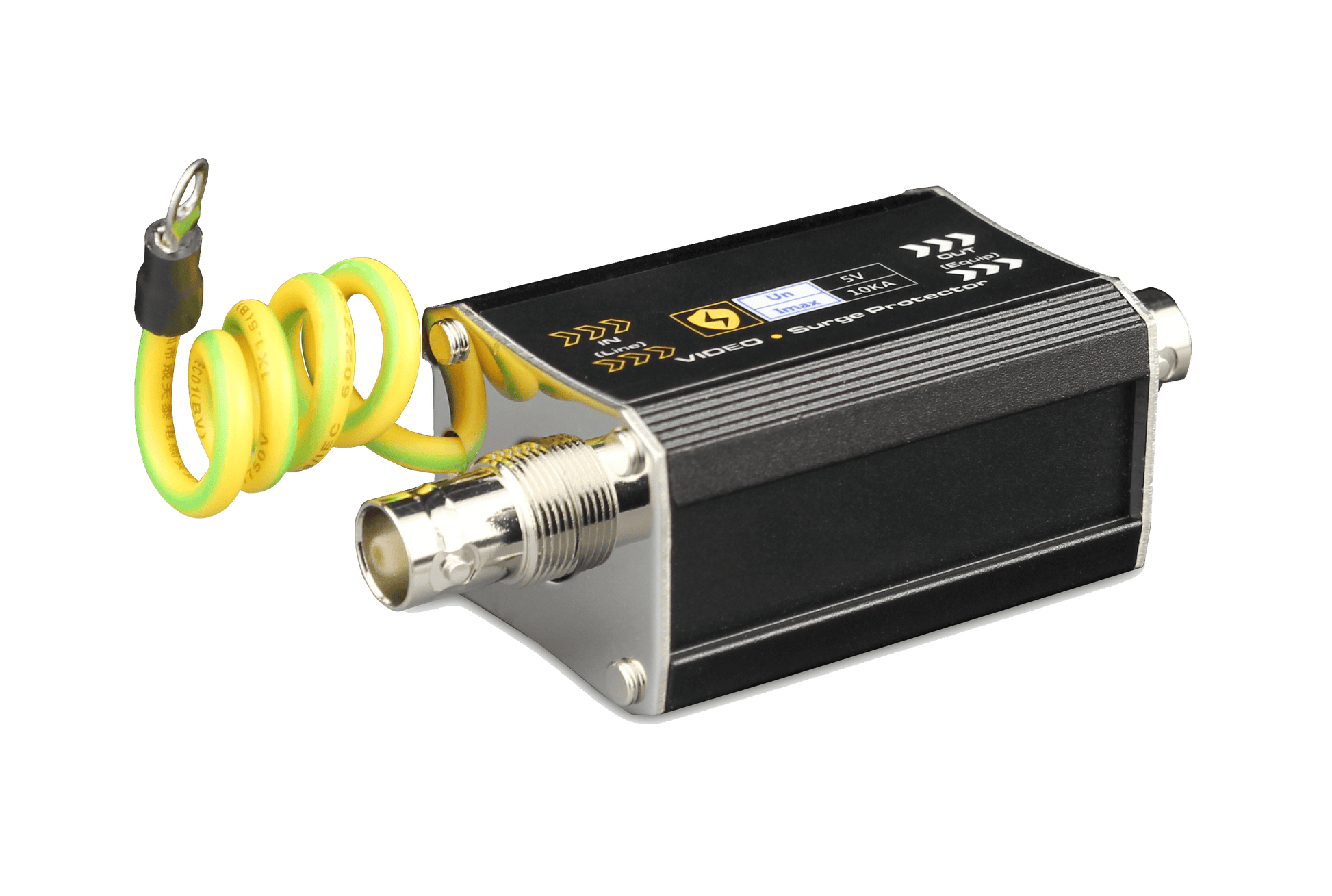

Video Surge Protector

Video Surge Protector

View full details

Overview

The video surge protector meets the provisions of national standard IEC61643-21:2000,protecting the equipment from damage due to monitor system signals induced overvoltage, operating overvoltage and electrostatic discharge .It features multilevel protection、large flow capacity、low voltage limited、quickly response and low insertion loss.

Features

Multi-Level protection.

  • Large flow capacity.
  • Low voltage limited.
  • Quickly response.
  • Low Insertion loss.

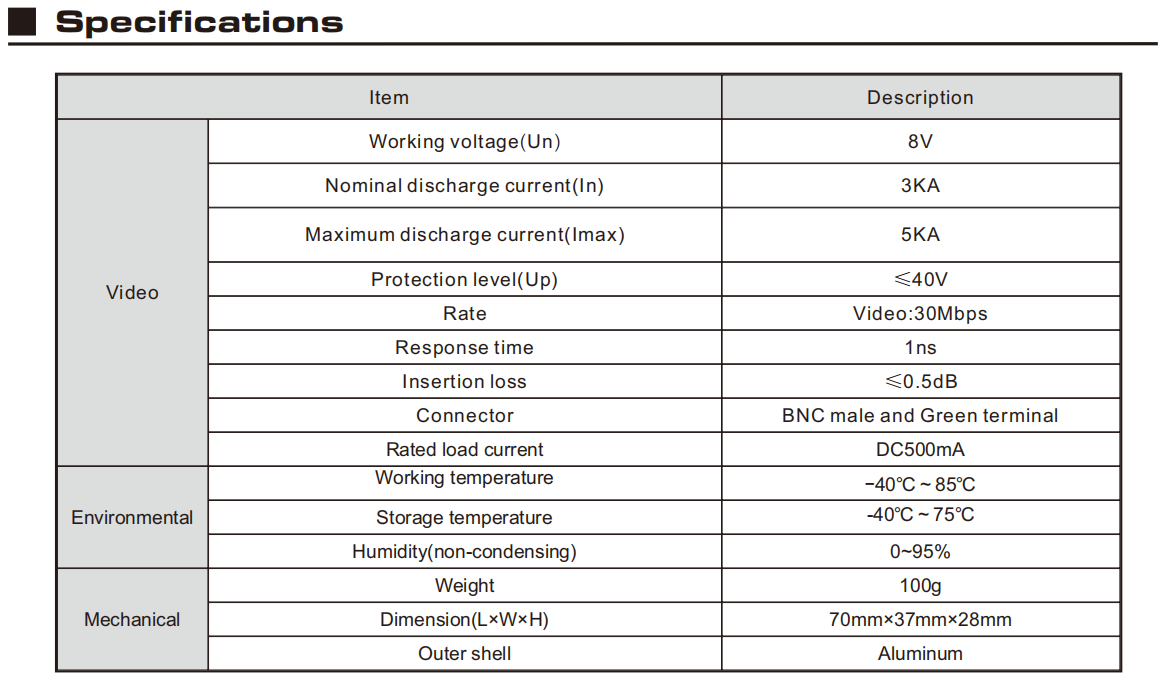

Specification

Board Diagram

Board Diagram

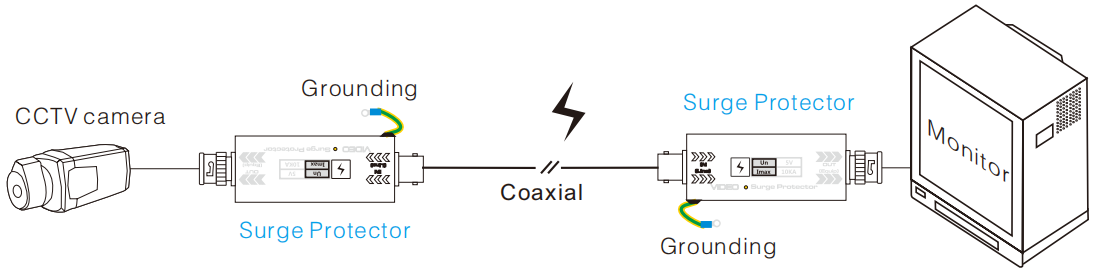

Application

Application Image

Packing List

1* Single Channel video surge protector

1* User Manual
