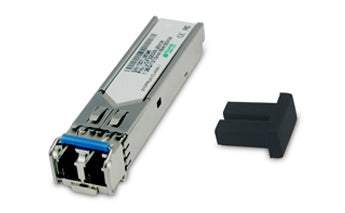

SFP Optical Module 1.25G Double Optical Fiber 20km
SFP Optical Module 1.25G Double Optical Fiber 20km
- 1.25Gbps Bandwidth
- Transmission Distance up to 20KM
- Single Mode, Dual Fiber
- LC\PC SFP Socket
- 1310nm Wave length
- Working Tempature: 0℃~70℃
Overview
This is a standard SFP optical module. It uses two single mode optical fibers and the speed rate can up to 1.25Gbps, transmission distance up to 20km. This product need to use in pair and match up with fiber converter and optical Ethernet switch with SFP port, it can be used in Ethernet, telecom and optical fiber communication and other industries.
Features
- Use SFP packaging form LC connector support , SFF8472 standard
- Support hot plug
- Use1310 FP laser and PIN-TIA
- The data transmission distance of single mode optical fiber can up to 20km
- Data input and output ports are comply with the low voltage emitter coupled logic(LVPECL) standard
- Low electromagnetic interference to the environment, strong ESD protection
- Meet IEC-60825 laser safety standard
- Meet RoHS standard

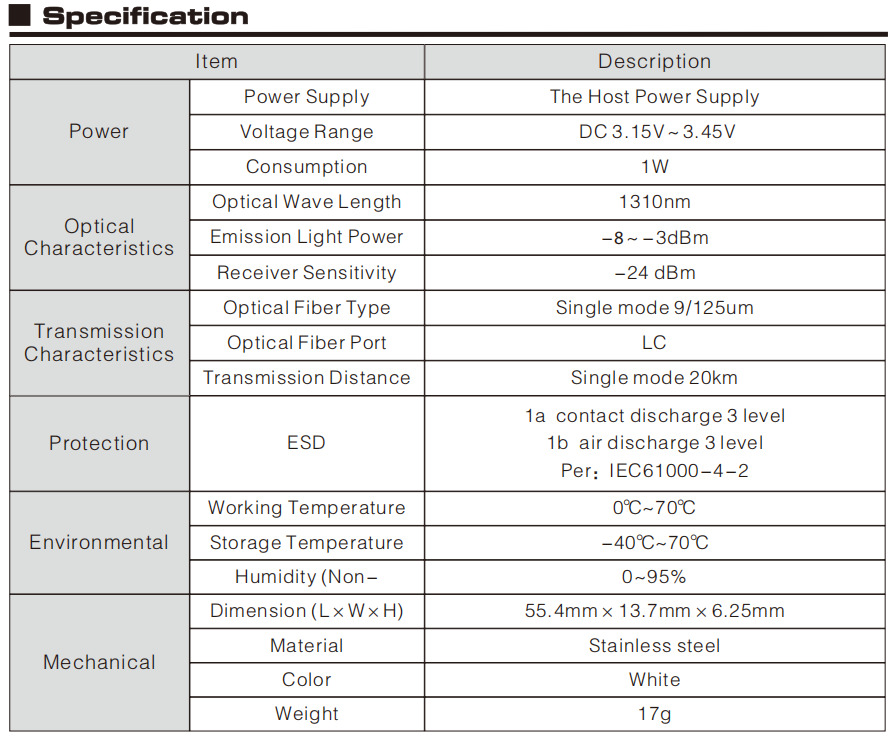

Technical Specifications
| Power Supply | The Host Power Supply |
| Voltage Range | DC 3.15V～3.45V |
| Consumption | 1W |
| Optical Wave Length | 1310nm |
| Emission Light Power | -8～-3dBm |
| Receiver Sensitivity | -24 dBm |
| Optical Fiber Type | Single mode 9/125um |
| Optical Fiber Port | LC |
| Transmission Distance | Single mode 20km |
| ESD | 1a contact discharge 3 level 1 b air discharge 3 level Per：IEC61000-4-2 |
| Working Temperature | 0℃~70℃ |
| Storage Temperature | -40℃~70℃ |
| Humidity (Non - | 0~95% |
| Dimension (L×W×H) | 55.4mm × 13.7mm ×6.25mm |
| Material | Stainless steel |
| Color | White |
| Weight | 17g |
