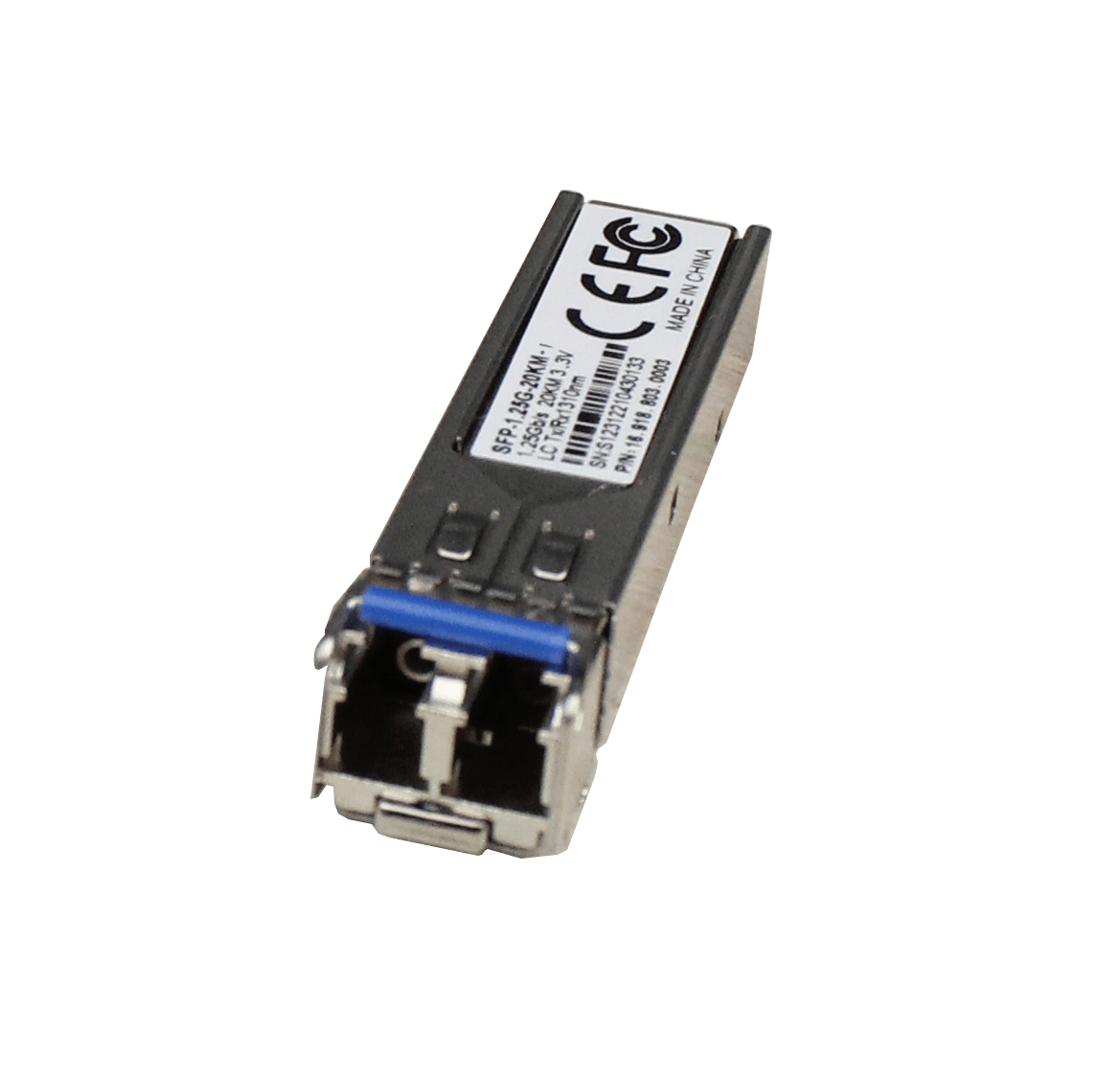

SFP Optical Module 1.25G 20km single-mode duplex-LC 1310nm (Industrial)
SFP Optical Module 1.25G 20km single-mode duplex-LC 1310nm (Industrial)
Overview
This is a industrial SFP optical module. It uses duplex single mode optical fiber and the speed rate can up to 1.25Gbps, transmission distance up to 20km. This product need to use
in pair and match up with fiber converter and optical Ethernet switch with SFP port, it can be used in Ethernet, telecom and optical fiber communication and other industries.
Features
- Use SFP packaging form, LC connector, support SFF8472 standard;
- Support hot plug ;
- Use1310nm FP laser and PIN photo detector;
- The data transmission distance of single mode optical fiber can up to 20 km;
- Data input and output ports are comply with the low voltage emitter coupled logic(LVPECL) standard;
- Low electromagnetic interference to the environment, strong ESD protection;
- Meet IEC-60825 laser safety standard;
- Meet RoHS standard.

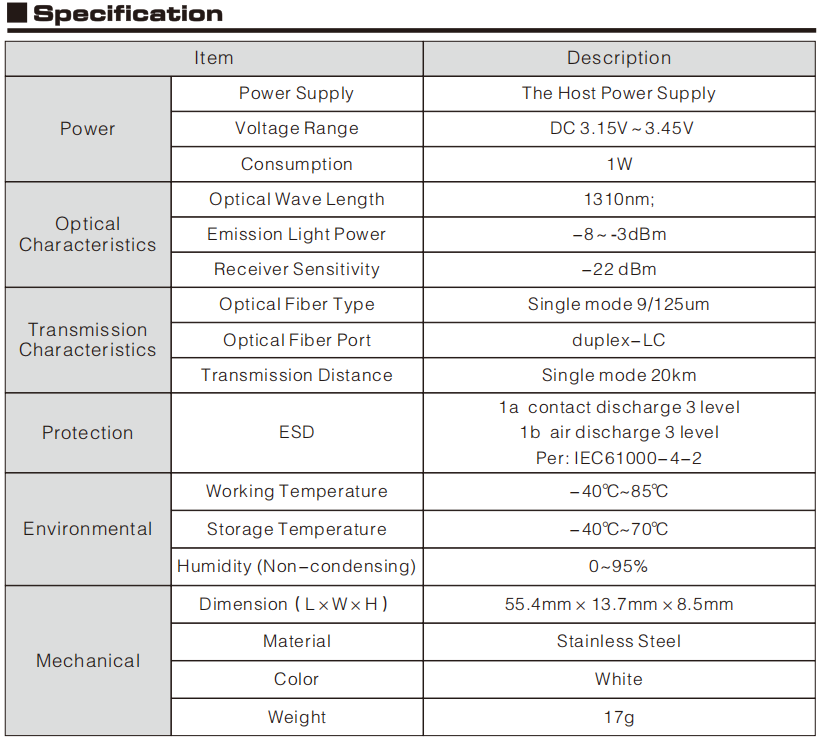

Technical Specifications
| Power Supply | The Host Power Supply |
| Voltage Range | DC 3.15V～3.45V |
| Consumption | 1W |
| Optical Wave Length | 1310nm; |
| Emission Light Power | -8～-3dBm |
| Receiver Sensitivity | -22dBm |
| Optical Fiber Type | Single mode 9/125um |
| Optical Fiber Port | duplex-LC |
| Transmission Distance | Single mode 20km |
| ESD | 1a contact discharge 3 level 1 b air discharge 3 level Per: IEC61000-4-2 |
| Working Temperature | -40℃~85℃ |
| Storage Temperature | -40℃~70℃ |
| Humidity (Non - | 0~95% |
| Dimension (L×W×H) | 55.4mm × 13.7mm ×8.5mm |
| Material | Stainless Steel |
| Color | White |
| Weight | 17g |
