Overview
This series of product is highly-reliable and secure cellular router for industrial networking. This series of product includes the following two models:
• Industrial 2-port 4G Router
• Industrial 5-port 4G Router
This series of product uses built-in industrial-grade 4G wireless module and WiFi module, with rich interfaces and strong scalability. With high-performance 32-bit professional network communication processors and embedded real-time operating systems, this series of product provides users with a safe, high-speed, stable and reliable 3G/4G wireless routing network. This series of product supports international FDD-LTE, TDD-LTE, WCDMA (HSPA+), CDMA2000 (EVDO), TD-SCDMA 3G/4G mobile multiband network standards. With rich functions and wide applications, they can provide users with convenient and high-speed network transmission function.
Features

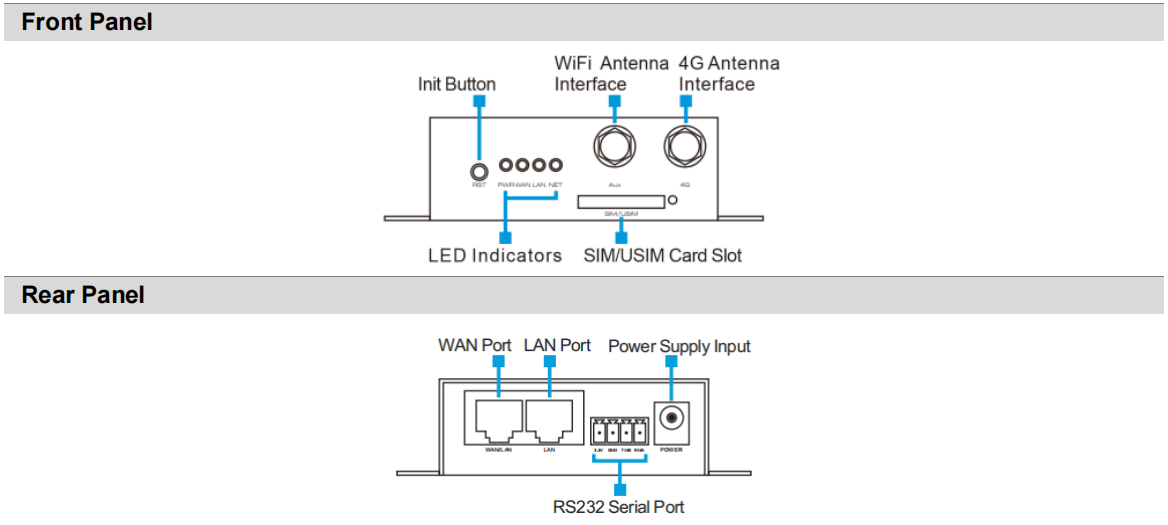

Abundant Interfaces
- 4*10/100Base-TX RJ-45 LAN port, 1*10/100Base-TX RJ-45 WAN port
- 1*4G LTE antenna, 1*WiFi antenna
- 1*SIM/USIM card slot
- 1*RS232 communication serial port
Cellular Features
- Supports multi-band connectivity with FDD-LTE/TDD-LTE/WCDMA(HSPA+)/ CDMA2000(EVDO)/ TD-SCDMA
- Supports detachable antenna
- LED indicators for data transmission status
Industrial Design
- Working temperature: -30℃~70℃
- Input voltage range: 7.5~32V DC
- Metal shell design
- Wall-mounted installation
Management Features
- Supports demilitarized zone (DMZ)
- Supports VPN management, including: GRE, PPTP, L2TP, IPSec, openVPN, N2N
- Wired network, mobile network and wireless network management
- Supports firewall management
- Supports hardware and software watchdog
