Ethernet & Power Over Coax cable
Ethernet & Power Over Coax cable

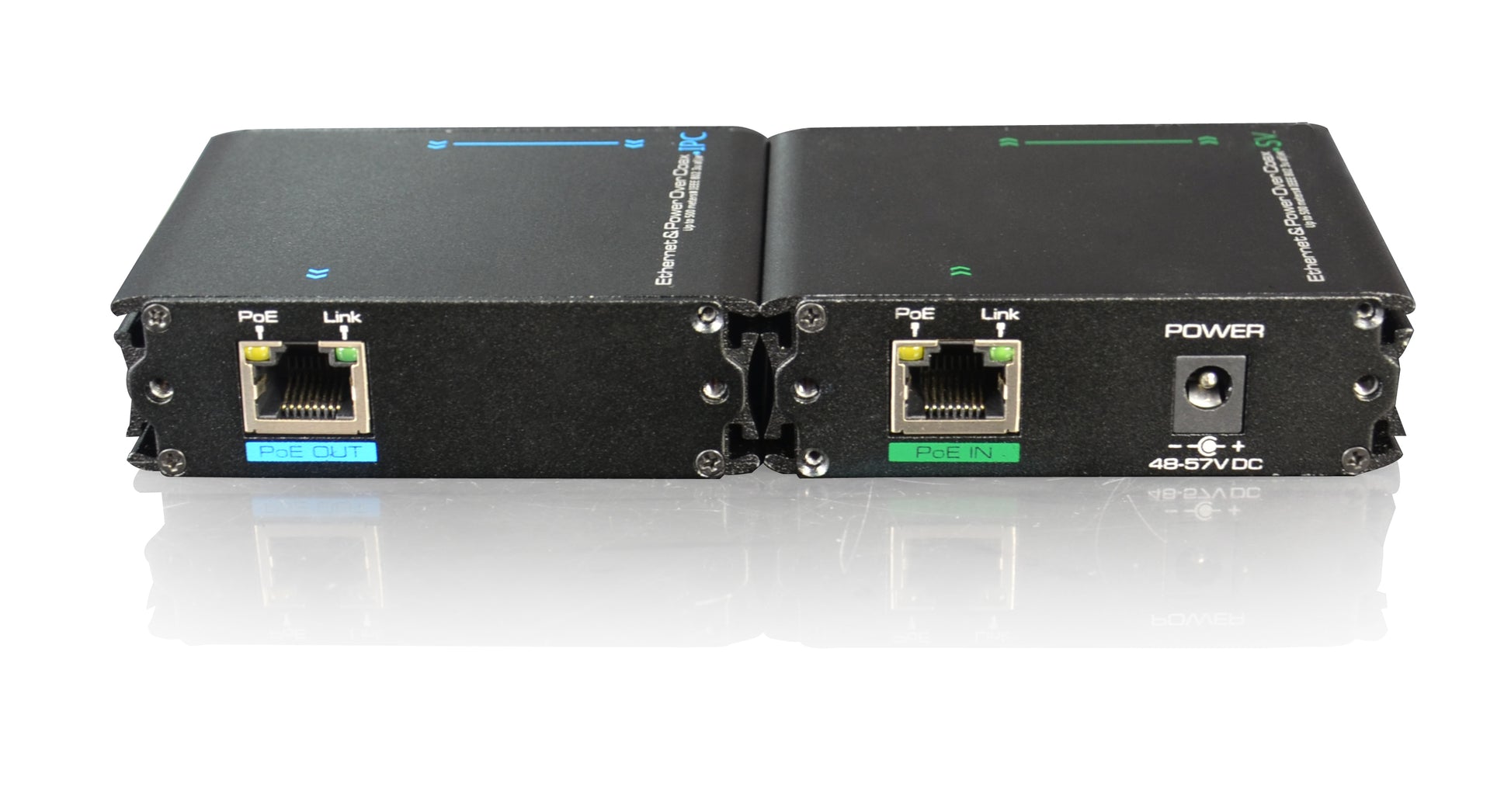

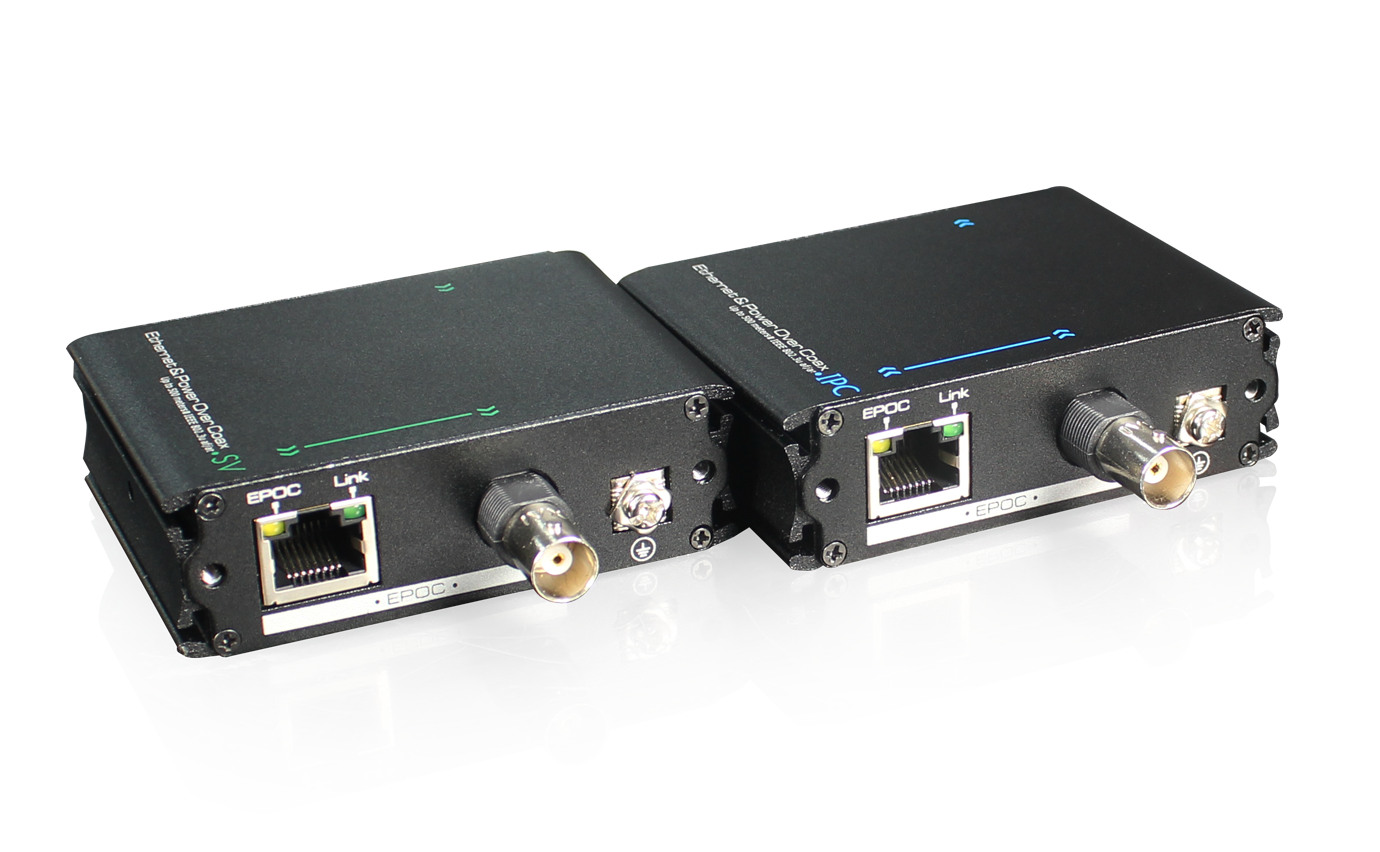

- The equipment consists of two parts: SV-Unit and IPC-Unit. SV-Unit has 48-57V DC port, one PoE input port and two output ports: BNC and RJ45; IPC-Unit has two input ports: BNC and RJ45, one PoE output port;
- Adopt advanced transmission and power supply technology, can transmit Ethernet signal and power signal up to 500m through coaxial cable and transmit Ethernet signal and power signal up to 400m Through network cable;
- Ethernet delay less than 1ms; Meet the requirement of point to point application;
- Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3af/at;
- Protection: excellent circuit isolation protection, superior product anti-thunder ,and anti-interference ability;
- Appearance: solid and delicate, meet 2U rack installation standard;
- Installation: plug-and-play, no setting required.
Overview

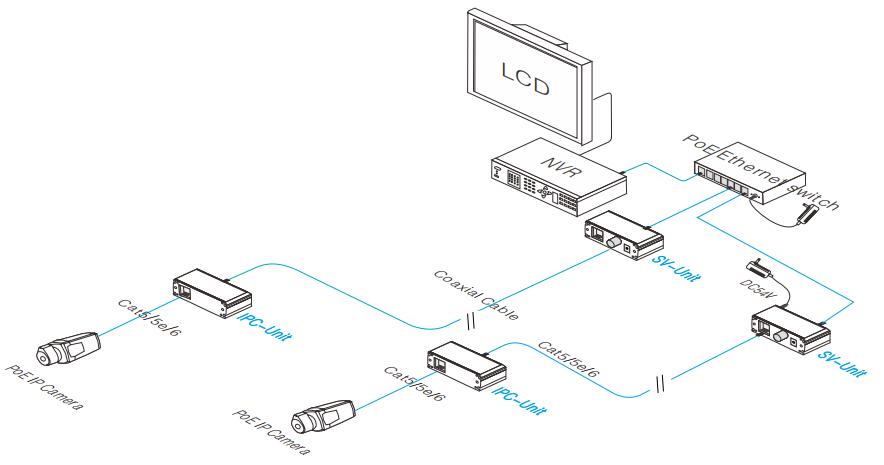

This Ethernet & Power Over Coax consists of one SV-Unit and one IPC-Unit. It can transfer
Ethernet signal of IPC-Unit to carrier signal through coaxial cable or network cable and
extend to SV-Unit, then transfer carrier signal to Ethernet signal and transmit power
synchronously. SV-Unit could use 54V DC power adapter or PoE power supply, which fully
meets the needs of long distance Ethernet signal transmission and power supply. It is widely
used in coaxial cable and network cable mixed wiring security surveillance and network
rebuilding project.
Features

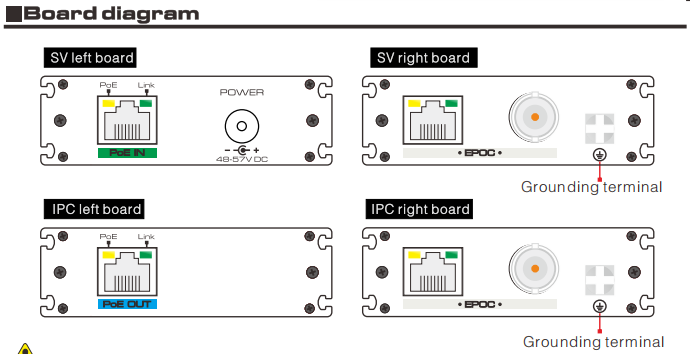

- The equipment consists of two parts: SV-Unit and IPC-Unit. SV-Unit has 48-57V DC port, one PoE
input port and two output ports: BNC and RJ45; IPC-Unit has two input ports: BNC and RJ45, one
PoE output port; - Adopt advanced transmission and power supply technology, can transmit Ethernet signal and power
signal up to 500m through coaxial cable and transmit Ethernet signal and power signal up to 400m
Through network cable; - Ethernet delay less than 1ms; Meet the requirement of point to point application;
- Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3af/at;
- Protection: excellent circuit isolation protection, superior product anti-thunder ,and anti-interference
ability; - Appearance: solid and delicate, meet 2U rack installation standard;
- Installation: plug-and-play, no setting required.
>
