Overview

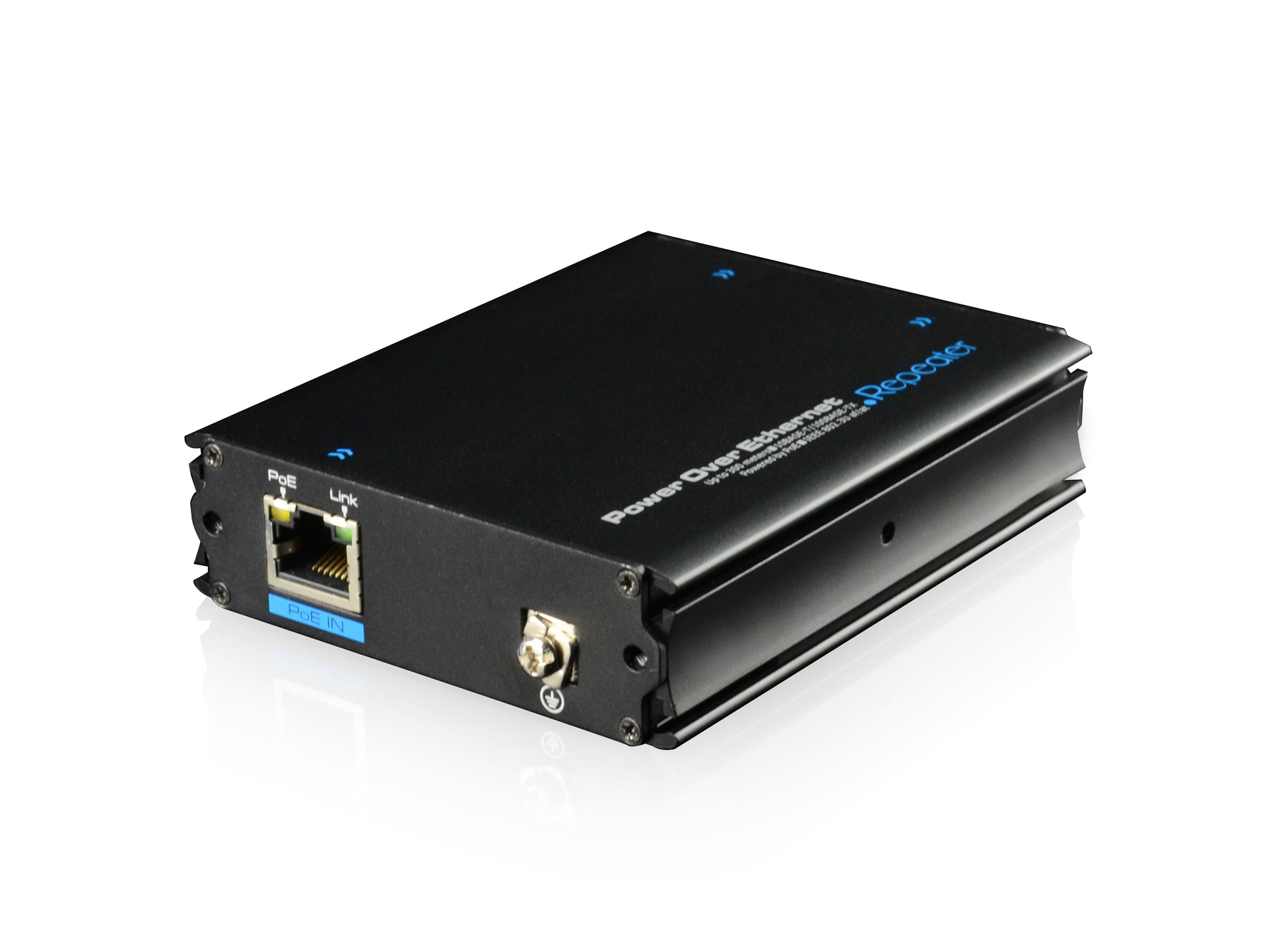

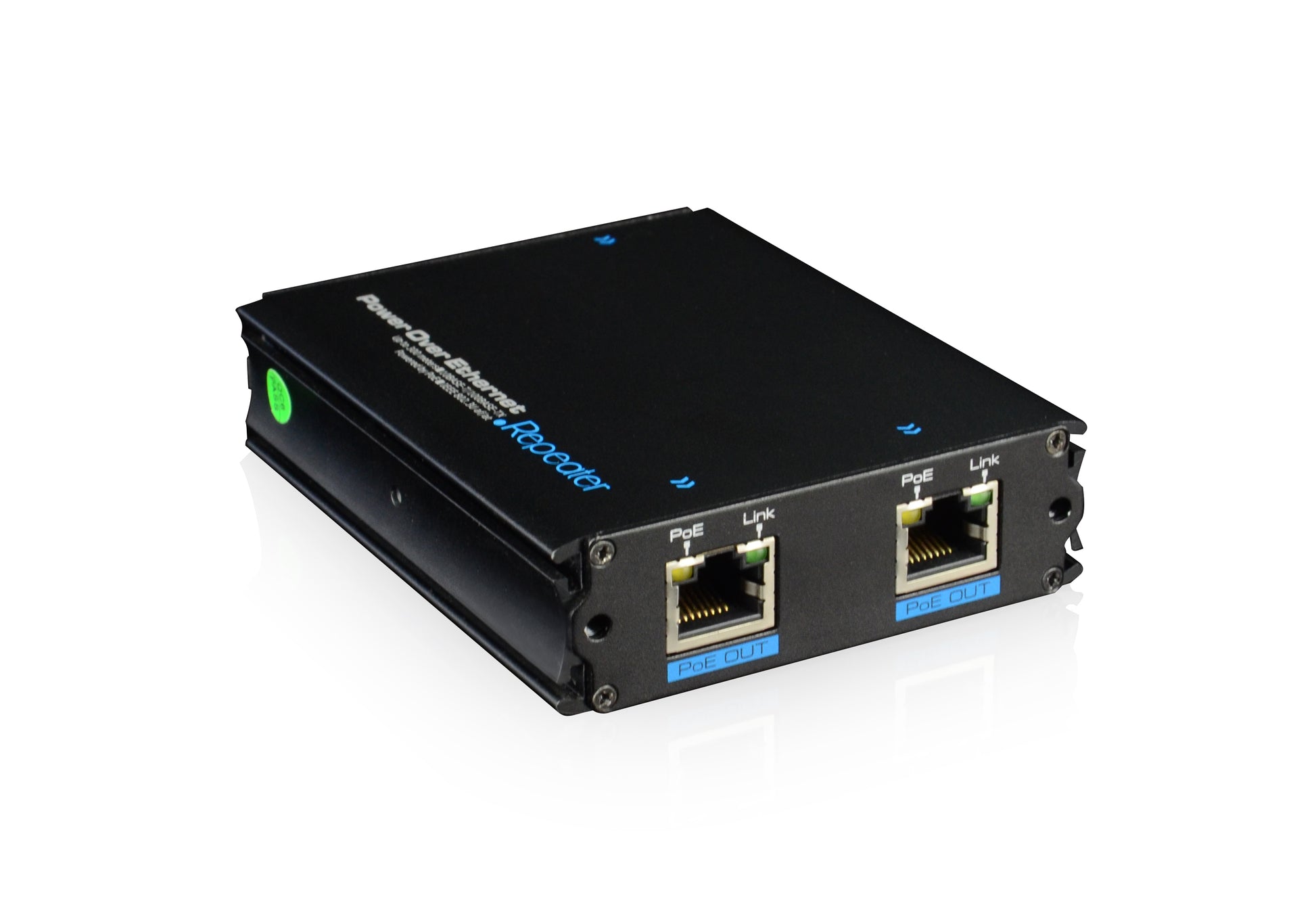

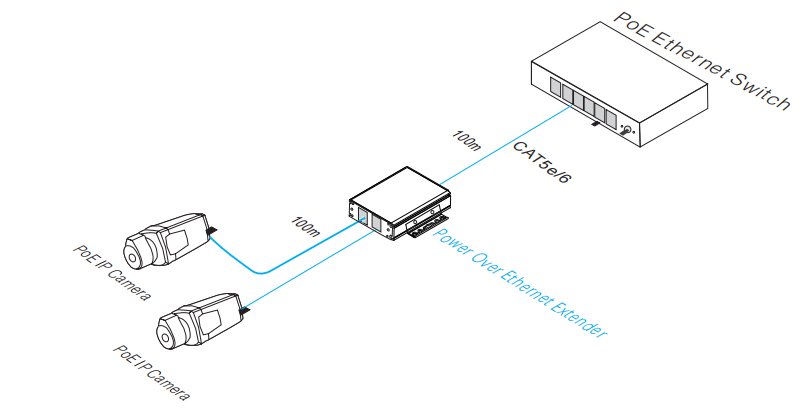

It is a PoE Ethernet repeater, which uses advanced network cable drive and power supply technology to extend 100M Ethernet signal to 200 meters, greatly extending the transmission distance and providing PoE at the same time. It is widely used in security surveillance and network project.
Features

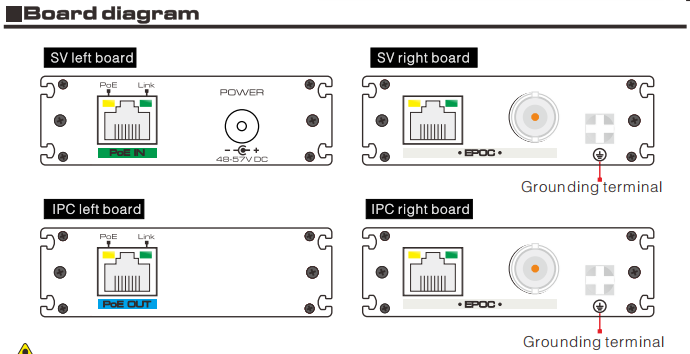

- Provide 3x 10/100Mbps Ethernet ports, one PoE input port, two PoE output ports, which can meet the requirements of local monitor, long distance transmission and PoE power supply;
- Use advanced net work cable drive technology, the longest distance up to 200m;
- PoE power supply is compatible with End-Span and Mid-Span;
- Meet standards of IEEE802. 3 10BASE-T, IEEE802. 3u 100BASE-TX, IEEE802. 3af/at;
- Excellent circuit isolation protection, effectively improve product's Surge Protection, ESD and anti-interference ability;
- Appearance and structure: solid and delicate, easily install on the wall and desktop;
- Operation: plug and play, no setting required.
>
