Overview

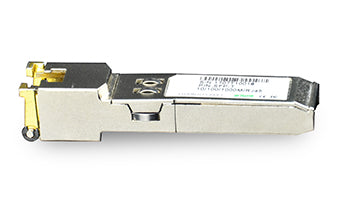

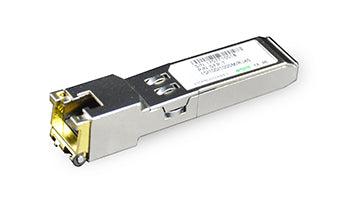

The Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach
over unshielded twisted-pair CAT 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals.
Features
- Up to 1.25Gb/s bi-directional data links ;
Hot-pluggable SFP footprint ;
Extended case temperature range (0°C to +70°C );
Fully metallic enclosure for low EMI;
Low power dissipation (1.05 W typical);
Compact RJ45 connector assembly;
Access to physical layer IC via 2-wire serial bus;
1000 BASE-T operation in host systems with SERDES interface.
