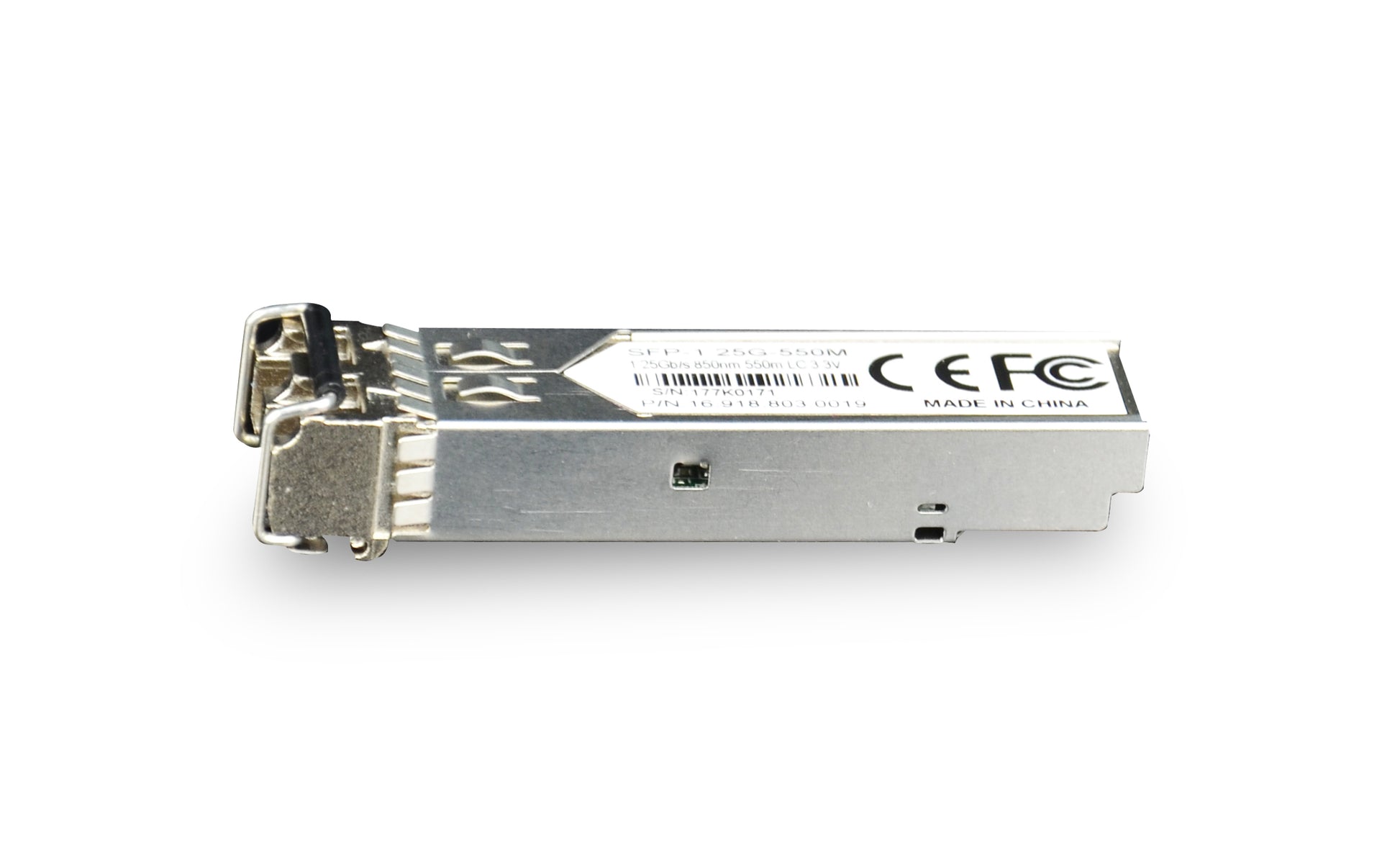

1.25G Duplex-LC Multi-mode 550m SFP Optical Module
1.25G Duplex-LC Multi-mode 550m SFP Optical Module
- Use SFP package type, LC connector, support SFF8472 standard.
- Use 850nm FP laser and PIN photo detector.
- Support hot plug.
- Multimode fiber can achieve 550m data transmission distance.
- Meet (LVPECL) standard data input and output port.
- Low EMI for environment, high eletrostatic protection.
- Meet IEC-60825 laser safety standard.
Overview
SFP optical module is a standard SFP optical module. the product use two multi-mode fibers,the rate can reach 1.25Gbps, transmission distance can reach 550m. the equipment can adapt optical fiber transceiver with SFP slot, optical Ethernet switch equipment, also can be used in Ethernet, telecom, optical fiber communication.
Features
- Use SFP package type, LC connector, support SFF8472 standard.
- Use 850nm FP laser and PIN photo detector.
- Support hot plug.
- Multimode fiber can achieve 550m data transmission distance.
- Meet (LVPECL) standard data input and output port.
- Low EMI for environment, high eletrostatic protection.
- Meet IEC-60825 laser safety standard.
Technical Specifications
| Power Supply | By the host power supply |
| Voltage Range | DC 3.15V～3.45V |
| Consumption | 1W |
| Optical Wave Length | 850nm |
| Emission Light Power | -8dBm～-3dBm |
| Receiver Sensitivity | -19 dBm |
| Optical Fiber Type | Multi-mode fiber50/125um |
| Optical Fiber Port | LC |
| Transmission Distance | 550m |
| ESD | 1a contact discharge 3 level 1 b air discharge 3 level Per：IEC61000-4-2 |
| Working Temperature | 0℃~70℃ |
| Storage Temperature | -40℃~70℃ |
| Humidity (Non - | 0~95% |
| Dimension (L×W×H) | 55.4mm × 13.7mm ×6.25mm |
| Material | Stainless steel |
| Color | White |
| Weight | 17g |
